Product Detail

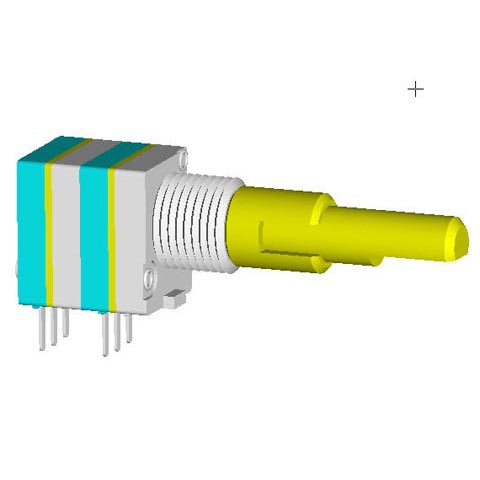

Series F082E
Package diameter 8mm
Operating Direction Vertical
Bushing material
Number of Gangs
Power-linear
Power-audio
Life cycle 50K
Switch Option N/A
Detent Option 20
Mounting
Element
Temperature ppm/℃
Tolerance
Pulse 10
Shaft material Metal
Life cycle
Operating type
Power rating DC5V,2.5mA
Travel(mm)
Lever length
Turns
Specification Document download
Introdution

1.Flux builded-up prevention is taken through inserting molding around the resistor with resin.

2.A large variety of products lined up to support various applications.

3.Miniature design for Audio applications

Electrical characteristics
Rated Power  DC 5V, 2.5mA (1mA Min)
Contact resistance  10Ω Max at DC 5V, 1mA
Insulation Resistance  More than 100MΩ at 250V for 1 minute
Withstand voltage  AC 300V for 1 minute
Number of detent  20 detents   (Angle: 18±° 3°)
Resolution  10 Pulses/360°for each phase. Chattering 3ms Max
Phase-difference  Td=T/4±T/6(in case of no detent)
Mechanical characteristics
Rotational Torque  20 ~ 250gf.cm
Total Rotational Angle  360° Continuous
Push-Pull Strength of shaft  Pull: 10.0Kgf Min; Push: 10.0Kgf Min
Bushing & nut tight strength  10.0Kgf.cm Min
Endurance characteristics
Rotational Life  50,000 Cycles Min.
Load Life  50,000 Cycles Min with load.
Dry heat  70C°, 240±10H, CR is 10Ω Max; IR 10MΩ Min at DC250V.
Cold  -30C°, 1H, CR is 10Ω Max; IR 10MΩ Min at DC250V.
Damp heat  40±2℃,90-95 RH for 96H,CR is 10Ω Max; IR 10MΩMin at DC 250V.
