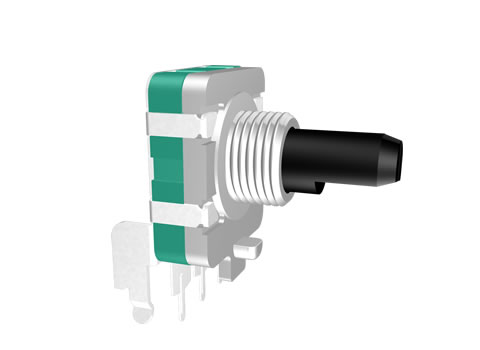

| Series | F16E |
| Package diameter | 16mm |
| Operating Direction | Horizontal Vertical |
| Bushing material | |
| Number of Gangs | |
| Power-linear | |
| Power-audio | |
| Life cycle | 15K |
| Switch Option | N/A |
| Detent Option | 12, 24 |
| Mounting | |
| Element | |
| Temperature ppm/℃ | |
| Tolerance | |
| Pulse | 12, 24 |
| Shaft material | Plastic |
| Life cycle | |
| Operating type | |
| Power rating | DC5V,10mA |
| Travel(mm) | |
| Lever length | |
| Turns | |
| Specification | Document download |
Introdution
1.High resolution of 12 pulse and 24 pulse in 16mm size.
2.Compact and highly accurate contact type encoder.
3.Incremental type.
| Electrical characteristics | |
| Rated Power | DC 5V, 5mA (0.5mA Min) |
| Fluttering | t1,t3<3ms |
| Insulation Resistance | More than 10MΩ at DC50V 1mA |
| Withstand voltage | 1 minute at AC 50V 1mA |
| Rotary Noise (Bounce) | t2<2ms |
| Phase Difference | >0.08T |
| Mechanical characteristics | |
| Rotational Torque of Detent | 30gf.cm~130gf.cm |
| Total Rotational Angle | 360°Continuous |
| Number and Position of Detent | 12 Detents (Angle: 30°±3°); 24 Detents (Angle: 15°±3°) |
| Push-Pull Strength | 8.0Kgf Min for 10Sec. |
| Bushing & nut tight strength | 10.0Kgf Min |
| Durability | |
| Rotational Life | 30,000 Cycles Min |
