Product Detail

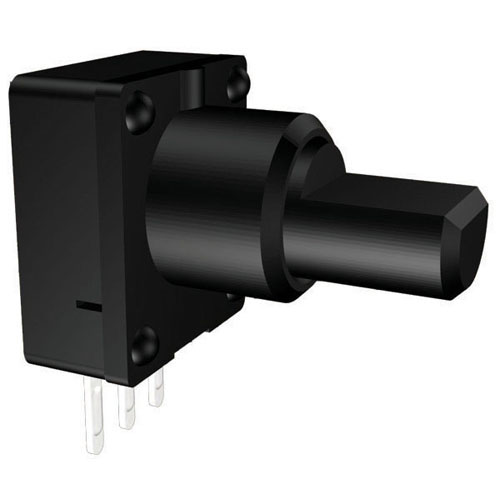

Series F10KV
Package diameter 10mm
Operating Direction Horizontal Vertical
Bushing material
Number of Gangs N/A
Power-linear 0.0125W
Power-audio 0.0125W
Life cycle 1Million cycles
Switch Option N/A
Detent Option N/A
Mounting
Element 1 piece
Temperature ppm/℃
Tolerance
Pulse
Shaft material Plastic
Life cycle
Operating type
Power rating
Travel(mm)
Lever length
Turns
Specification Document download
Introdution

1.Carbon element.

2.Inserting molding around the resistor with resin.

3.Long life, Miniature structure .

Electrical characteristics
Total Resistance  1KΩ -1MΩ
Total Resistance Tolerance 500Ω
Resistance Taper  B
Rated Power  0.0125W
Withstand Voltage  1 minute at AC 250V
Insulation Resistance  More than 100MΩ at DC 250V 1 Minute
Max. Operating Voltage  AC50V.DC 5V
Residual Resistance  Term.1~2: Less than 5% of Total Resistance: Term.2~3: Less than 5% of Total Resistance
Rotational Noise  Less than 300mV
Mechanical characteristics
Total Rotational Angle  300°±10°
Rotational Torque  3~50gf.cm
Rotational Stopper Strength  2Kgf.cm Min.
Push-Pull Strength  Push: 5Kgf Min: Pull: 5Kgf Min
Durability
Rotational Life  Standard life: 100,000 Cycles Min.: Long life: 1Million Cycles Min.
