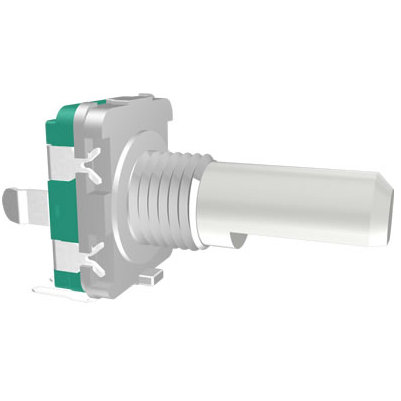

| Series | F11E |
| Package diameter | 11mm |
| Operating Direction | Horizontal Vertical |
| Bushing material | |
| Number of Gangs | |
| Power-linear | |
| Power-audio | |
| Life cycle | 15K |
| Switch Option | Y |
| Detent Option | 15, 20 |
| Mounting | |
| Element | |
| Temperature ppm/℃ | |
| Tolerance | |
| Pulse | 15, 20 |
| Shaft material | Metal |
| Life cycle | |
| Operating type | |
| Power rating | DC5V,10mA |
| Travel(mm) | |
| Lever length | |
| Turns | |
| Specification | Document download |
Introdution
 |
 |
| F11E-S (with Momentary switch) | F11E-N (Without Momentary switch) |
1.Compact and highly accurate contact type encoder.
2.0.5mm-travel push switch with compliance to 5.9 mm height.
3.Incremental type.
| Electrical characteristics | |
| Rated Power | DC 5V 10mA (1mA Min) |
| Fluttering | t1,t3<3ms |
| Insulation Resistance | More than 100MΩ at 250V 1mA |
| Withstand voltage | 1 minute at AC 300V 1mA |
| Sliding Noise (Bounce) | t2<2ms |
| Phase Difference | >0.08T |
| Mechanical characteristics | |
| Rotational Torque of Detent | 50gf.cm~180gf.cm(at 5~35℃) |
| Total Rotational Angle | 360° Continuous |
| Number and Position of Detent | 15 Detents (Angle: 24°±3°); 20 Detents (Angle: 18°±3°) |
| Push-Pull Strength of shaft | 8.0Kgf Min for 10sec. |
| Bushing & nut tight strength | 10.0Kgf.cm Min |
| Durability | |
| Rotational Life | 30,000 Cycles Min |
| Switch characteristics | |
| Contact resistance | 100mΩ Max |
| Maximum ratings | DC 5V, 10mA (1mA Min) |
| Insulation Resistance | More than 100MΩ at DC 250V,1mA |
| Withstand Voltage | 1 minute at AC 300V,1mA |
| Travel | 0.5±0.4/-0.3mm |
| Operating Force | 600±200gf |
