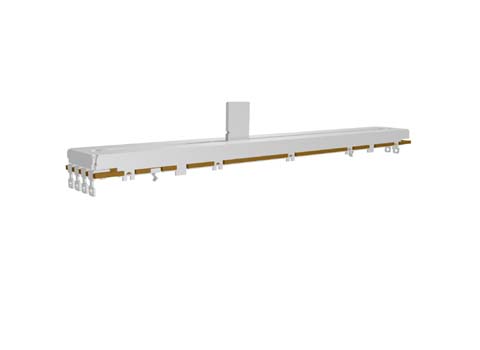

| Series | F10008 |
| Package diameter | |
| Operating Direction | Horizontal |
| Bushing material | |
| Number of Gangs | |
| Power-linear | 0.25W |
| Power-audio | 0.125W |
| Life cycle | 50K |
| Switch Option | |
| Detent Option | N/A |
| Mounting | |
| Element | 1-2 |
| Temperature ppm/℃ | |
| Tolerance | |
| Pulse | |
| Shaft material | |
| Life cycle | |
| Operating type | |
| Power rating | |
| Travel(mm) | 100 |
| Lever length | 13.5/14.5 |
| Turns | |
| Specification | Document download |
Introdution
1.Metal housing.
2.Excellent operational feel from less lever wobble.
3.Maximum attenuation of over 110dB(compatible to total resistance value of over 10kΩ)
4.Metal slide rod type.
| Electrical characteristics | |
| Total Resistance | 1KΩ~1MΩ |
| Total Resistance Tolerance | 500 Ω |
| Resistance Taper | A, B, C |
| Withstand Voltage | 1 minute at AC 300V |
| Insulated Resistance | More than 100MΩ at DC 250V |
| Sliding Noise | Less than 100mV |
| Residual Resistance | Term .1~2: Less than 10Ω; Term .2~3: Less than 30Ω |
| Gang Error (Dual Unit) | - 40dB~0dB±3dB |
| Max operating Voltage | DC 20V |
| Rated Power | Linear Taper B: 0.25W;Other Tapers: 0.125W |
| Mechanical characteristics | |
| Slide Travel | 100mm |
| Slide torque | Less than 30gf |
| Stopper Strength | 10Kgf.cm (from the base level to a point of 2mm) |
| Level Wobble | 2(2xL)/25mm Max. (L: Level length both sides) |
| Level Push-Pull Strength | 5.0Kgf Min at 10Sec. |
| Durability | |
| Slide Life | 50,000 Cycles Min |
