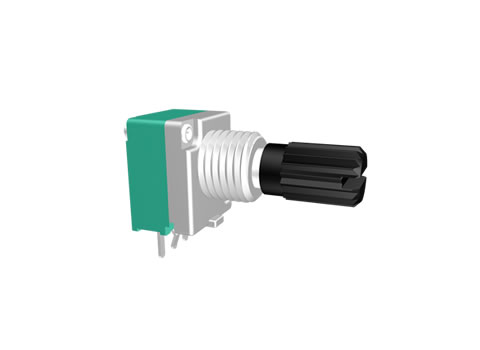

| Series | F093 |
| Package diameter | 9mm |
| Operating Direction | Horizontal Vertical |
| Bushing material | |
| Number of Gangs | 1-6 |
| Power-linear | 0.05W |
| Power-audio | 0.025W |
| Life cycle | 15K |
| Switch Option | Y |
| Detent Option | Y |
| Mounting | |
| Element | |
| Temperature ppm/℃ | |
| Tolerance | |
| Pulse | |
| Shaft material | |
| Life cycle | |
| Operating type | |
| Power rating | |
| Travel(mm) | |
| Lever length | |
| Turns | |
| Specification | Document download |
Introdution
1. Various configuration can be adjusted according to customer's requirement.
2. Snap-in structure assures easy mounting.
3. Closed structure improves dust and flux resistance.
| Electrical characteristics | |
| Total Resistance | 1KΩ~1MΩ |
| Total Resistance Tolerance | 500Ω＜R＜1MΩ:± 20% R＜500Ω or R＞1MΩ:±30% |
| Resistance Taper | A, B, C |
| Max. Operating Voltage | AC50V, DC10V |
| Rated Power | Linear Taper B: 0.05W: Other Tapers: 0.025W |
| Rotational Noise | Less than 100mV |
| Insulation Resistance | More than100MΩ at DC 250v |
| Withstand voltage | 1 minute at AC 300V |
| Residual Resistance | Term.1~2: Less than 20Ω:Term.2~3: Less than 20Ω |
| Gang Error (Dual Unit) | -40dB~0dB±3dB |
| Mechanical characteristics | |
| Total Rotational Angle | 300°± 10° |
| Rotational Torque | 5~90gf.cm |
| Click Torque | 50gf.cm~200gf.cm |
| Rotational Stopper Strength | 3.0Kgf.cm Min |
| Push-Pull Strength | 6.0Kgf Min |
| Durability | |
| Rotational Life | Standard life：15,000 Cycles Min.: Long life: 100,000 Cycles Min. |
